Exercise Bike Seat Adaptor Kit Installation
Instructions
Remove current seat and any loose shims or additional
separated plates.
Bolt the adaptor plate (white) to current bike
post/plate using nuts, bolts and washers provided. Use adjustable wrench
to tighten nuts securely.

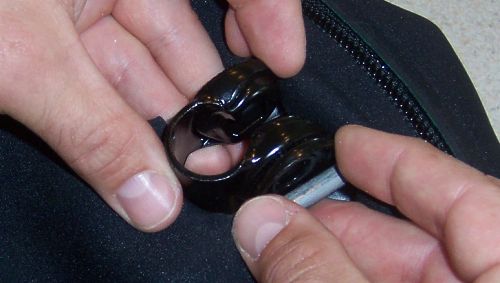

Insert or check to make sure the (black or silver)

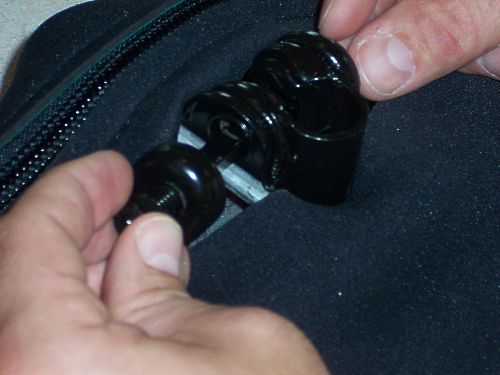

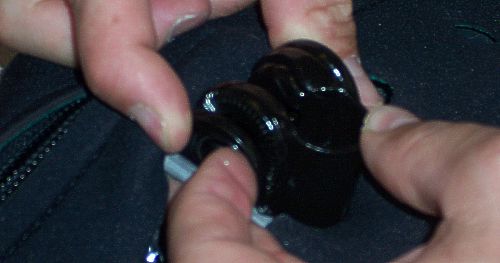

round post adaptor is attached to the round seat rails. If not already installed, remove nuts and center

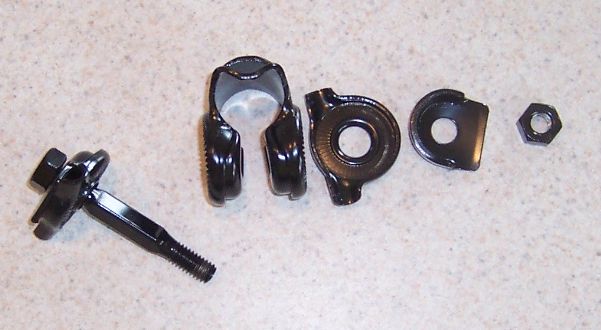

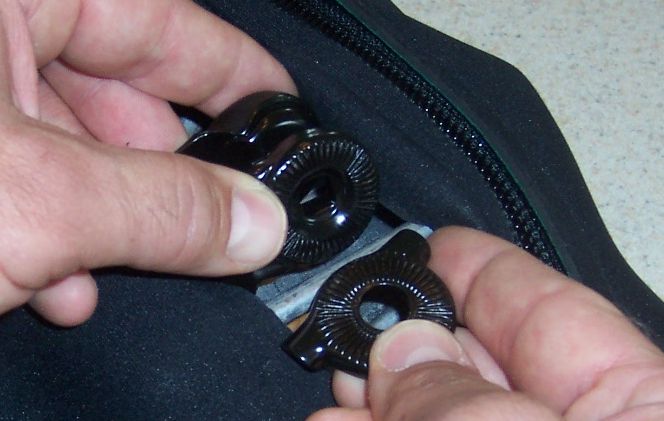

connecting rod, separate individual parts and insert between rails as

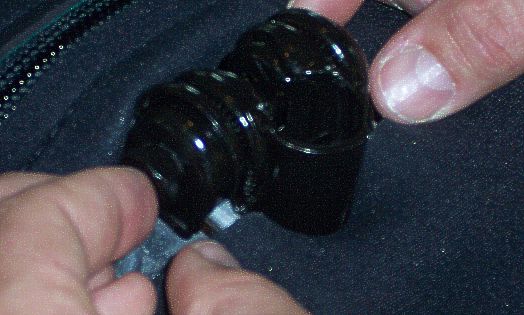

shown in instruction photos. Re-install connecting rod and nuts.

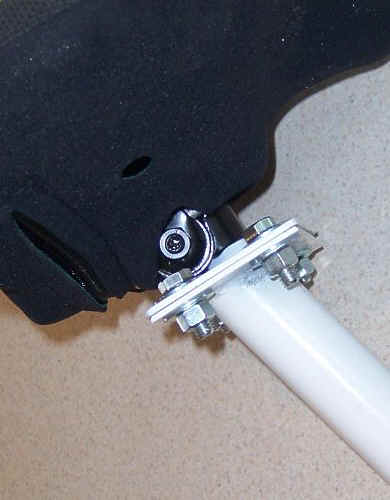

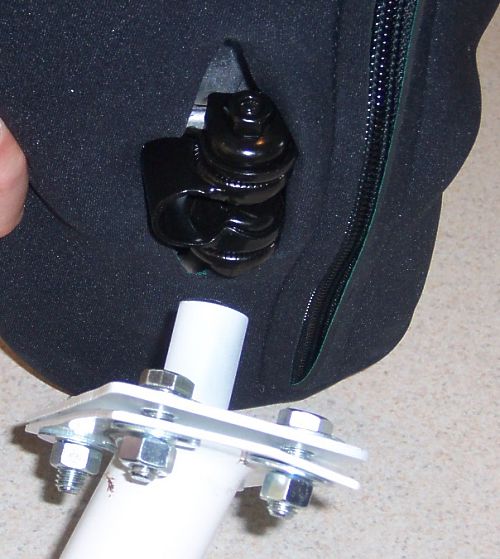

Slide black adaptor and seat onto
white adaptor plate.
Rotate seat from side to side, front to back, and
up and down, to position seat in proper position according to enclosed
instructions. Seat should tilt very slightly down to the front.
Tighten black nuts on both sides of black adaptor
until tight and seat does not move.
You may need to lower your large seat post 3 to
5 inches to accommodate the adaptors and new seat.
Check nuts after 1 week and tighten as necessary.
If you need assistance, call customer service Toll
Free (888) 855-3545
